POS80-CX

Availability:
Quantity:
  • POS80-CX
  • Naiting

Brief introduction

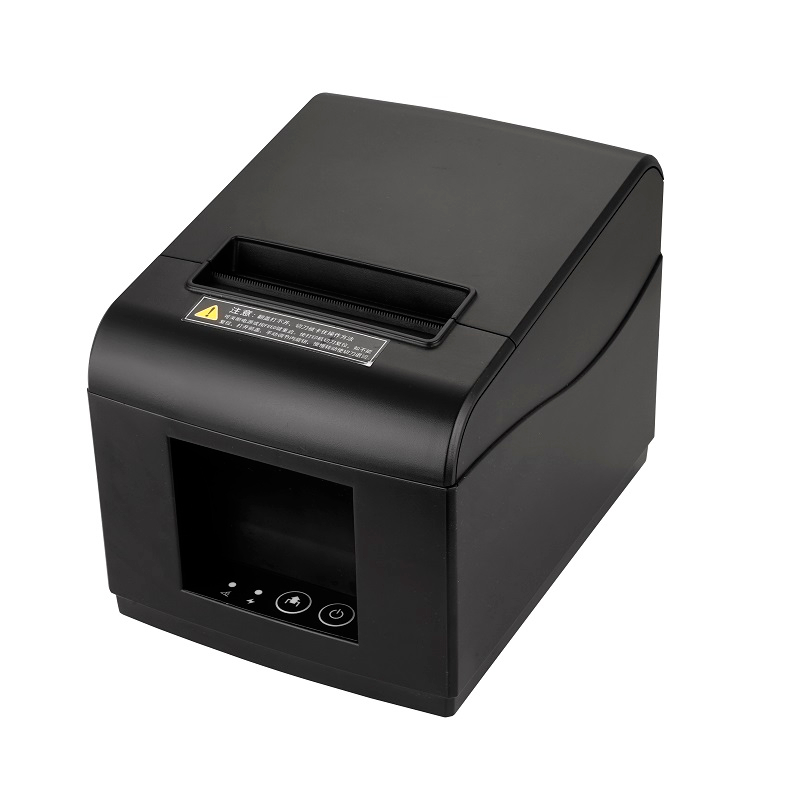

NT-POS80-CX is a thermal POS printer with auto-cutter. It is a cost-effective product launched by our company on 2021. It has great printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields.


NT-POS80-CX connects other devices via, Ethernet or USB port. It offers drivers for WINDOWS and LINUX operating systems.

Main features

1) Large gears that print faster with auto-cutter.

2) Support 1D and 2D Printing

3) Low noise and high printing speed

4) Easy paper loading. Easily use and maintain

5) Support mark paper and continuous paper printing

6) With cash drawer interface RJ11

7) Optional communication interfaces(Such as USB, Serial, Ethernet)


Item:   NT-POS80-CX

Parameter

Printing parameter

Printing method

Thermal printing

Resolution

203DPI,8 dots/mm

Printing width

72mm(576 dots)

Printing speed

230 mm/s

Interfaces

Standard: cash drawer(RJ11)

USB+Ethernet Interface Port

Power supply

Input

100-240V   AC,50-60HZ

Output

24V DC-2.0A

External Only

Power Adaptor

Command set

/

ESC/POS   compatible commands

Storage

RAM

RAM 8M bytes, receive buffer area 1M bytes

FLASH

FLASH 8k bytes,   NV bitmap 256K bytes

characters

Chinese

GB18030 24×24

Words, figures

ASCII 9×17,12×24

User-defined

Support

Code pages

Optional international character sets 45


Bar codes

1D

UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93

2D

PDF417、QR Code

Detection function

Sensor

Paper out, cover opened, paper will be   lack(optional),un-take out printed paper(optional)

LED indicator

Power indicator

Green

Paper out indicator

Red

Error indicator

Red

Buzzer

/

Built-in Buzzer

Paper Requirement

Type

Standard thermal   receipt paper

Width

79.5±0.5mm

Thickness

0.056~0.1mm

Diameter

80mm(Max.)

Physical    characteristics

Paper loading

Easy paper   loading

Paper cutting

Manual or   automatically cut paper

Operating condition

-10℃ ~ 50℃,25% ~   80%RH

Storage condition

~40℃ ~ 70℃,≤93%RH(40℃)

Outline dimension

145mm×195mm×144mm(W×L×H)

Weight

1.5Kg

Reliability

TPH life

150km

Cutter life

2,000,000 times

Motor life

360,000 hours

Software function

Driver procedure

Windows(WIN7/WIN8/Vista/XP/2000)

Ubuntu 12.04 32/64, Ubuntu 14.04 32/64
