NT-POS80-CL
Naiting

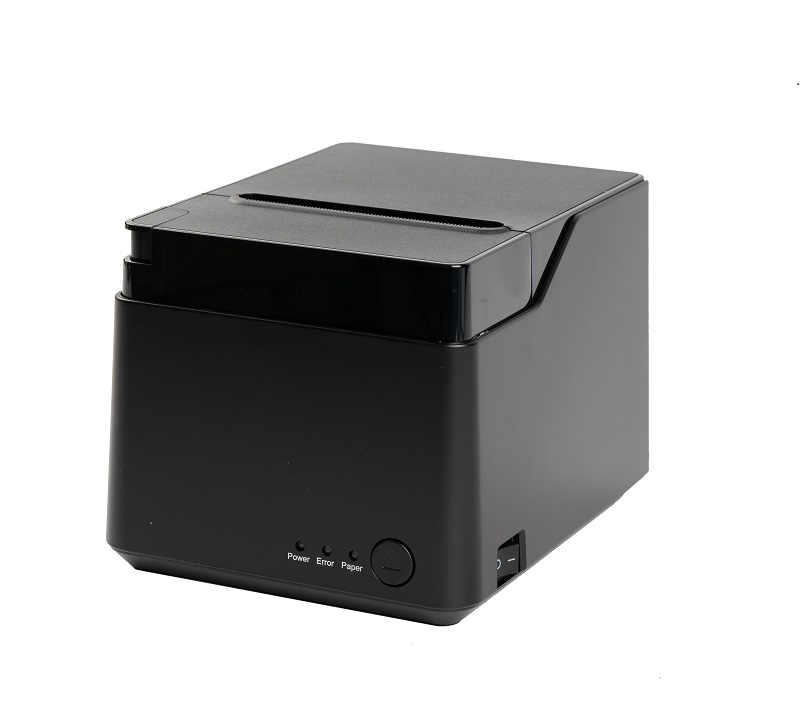

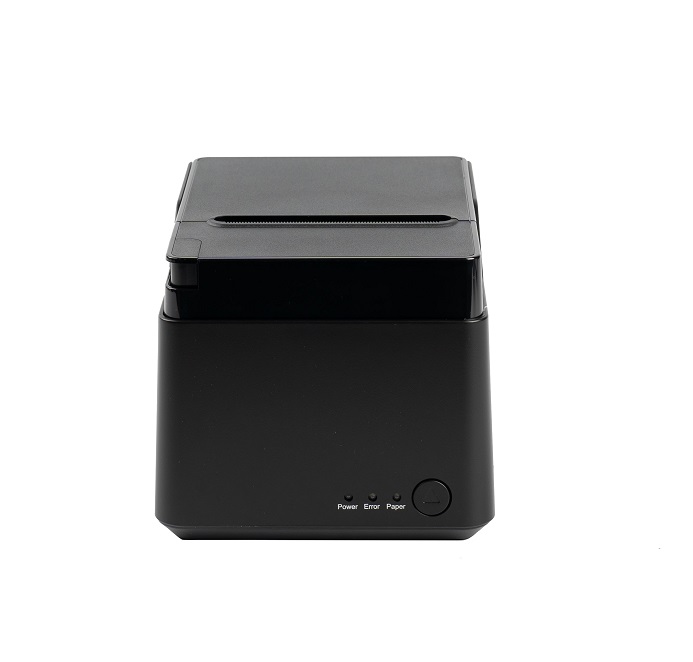

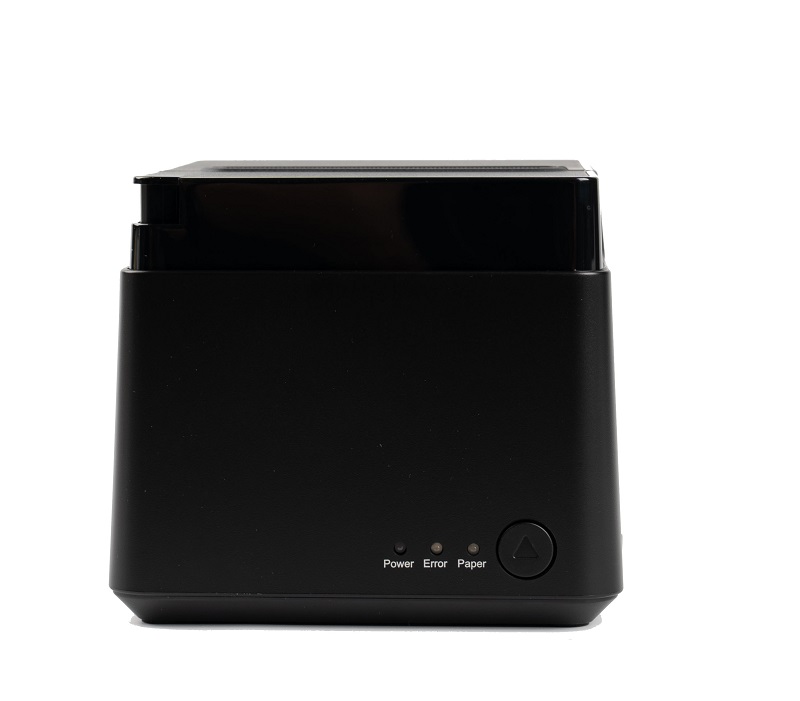

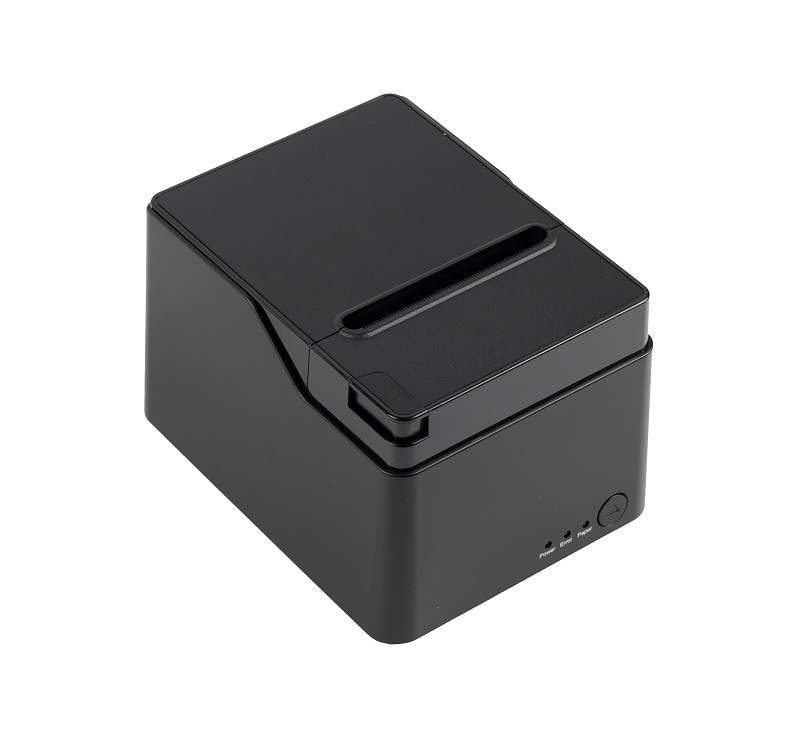

NT-POS80-CL is a thermal POS printer with auto-cutter. It is a cost-effective product launched by our company on 2023. It has great printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields.
NT-POS80-CL connects other devices via, Ethernet or USB port. It offers drivers for WINDOWS and LINUX operating systems.
1) Large gears that print faster with auto-cutter.
2) Support 1D and 2D Printing
3) Low noise and high printing speed
4) Easy paper loading. Easily use and maintain
5) Support mark paper and continuous paper printing
6) With cash drawer interface RJ11
7) Optional communication interfaces(Such as USB, Ethernet)
Item: NT-POS80-CL | Parameter | |
Printing parameter | Printing method | Thermal printing |
Resolution | 203DPI,8 dots/mm | |
Printing width | 72mm(576 dots) | |
Printing speed | 220 mm/s | |
Interfaces | Standard: cash drawer(RJ11) USB /USB+Ethernet interface Port | |
Power supply | Input | 100-240V AC,50-60HZ |
Output | 24V DC-1.5A | |
External Only | Power Adaptor | |
Command set | / | ESC/POS compatible commands |
Storage | RAM | RAM 8M bytes, receive buffer area 1M bytes |
FLASH | FLASH 8k bytes, NV bitmap 256K bytes | |
characters | Chinese | GB18030 24×24 |
Words, figures | ASCII 9×17,12×24 | |
User-defined | Support | |
Code pages | Optional international character sets 45 | |
Bar codes | 1D | UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93 |
2D | PDF417、QR Code | |
Detection function | Sensor | Paper out, cover opened, paper will be lack(optional),un-take out printed paper(optional) |
LED indicator | Power indicator | Green |
Paper out indicator | Red | |
Error indicator | Red | |
Buzzer | / | Built-in Buzzer |
Paper Requirement | Type | Standard thermal receipt paper |
Width | 79.5±0.5mm | |
Thickness | 0.056~0.1mm | |
Diameter | 80mm(Max.) | |
Physical characteristics | Paper loading | Easy paper loading |
Paper cutting | Manual or automatically cut paper | |
Operating condition | -10℃ ~ 50℃,25% ~ 80%RH | |
Storage condition | ~40℃ ~ 70℃,≤93%RH(40℃) | |
Outline dimension | 140mm×175mm×125mm(W×L×H) | |
Weight | 1.3Kg | |
Reliability | TPH life | 150km |
Cutter life | 2,000,000 times | |
Motor life | 360,000 hours | |
Software function | Driver procedure | Windows(WIN7/WIN8/Vista/XP/2000) Ubuntu 12.04 32/64, Ubuntu 14.04 32/64 |
