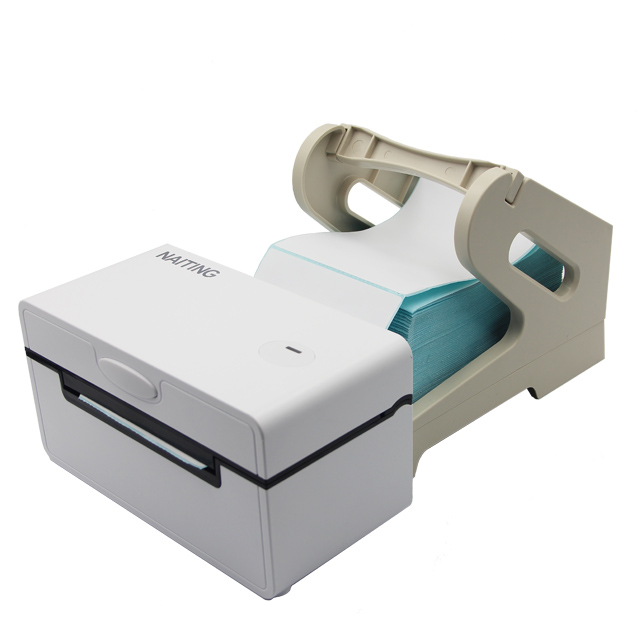

NT-PC301D-LA
Naiting
Brief introduction
NT-PC301D-LN printer is designed for real-time and batch label printing, with standard USB and USB+Bluetooth port.
Direct thermal printing are available in printer body, you can choose various kinds of printing materials, for example: thermal paper, plastic paper, fan fold paper etc.
Common 1D barcode and 2D barcode fonts are built inside printer, also it support 4 direction printing, characters can be enlarged from 1 to 10 times. Besides, it supports 5 different size bitmap fonts, OCR-A and OCR-B fonts, together with 203dpi higher print resolution, this series printer are your best choice among the same class.
1) Manufacturing & Warehousing logistic industry
Product labeling and marking
Warehouse management label
Category marking label
Operation instruction marking label
Distributing instruction marking label
2) Healthcare
Patients marking
Medicine marking
Specimen marking
3) Parcel Post
Mailing label
4) Office & Studio
5) Retail
Price Label marking
Product item marking
Jewelry product marking
1)Free bundled labeling software and Driver
2)Can print text, bar code, pictures
3)Built in 8 dot matrix font English number
4)Built in simplified Chinese, traditional and Korean font for programming.
5)2MB SDRAM Memory
6)2MB FLASH Memory
Item :PC301D-LA | Parameter | |
Printing parameter | Printing method | Thermal Line printing |
Resolution | 203DPI,8 dots/mm | |
Print Comand | CPCL/ESC/POS | |
Compatible OS | Windows Systems,Android& iOS operate System | |
Max Printing width | 25mm--108 mm (4.25”) | |
Max Printing speed | 160 mm/s | |
Interfaces | USB2.0/USB 2.0+Bluetooth | |
Paper | Type | Lable Paper, Tag Paper, Folded Paper, Roll Paper |
Width | 110±0.5 mm | |
Thickness | 0.06-0.3mm | |
Power supply | Input | 100-240V AC,50-60HZ |
Output | 24V DC-2.0A | |
External universal switching power supply | ||
Bar codes | 1D | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5,EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
2D | PDF-417, Maxicode, DataMatrix, QR code | |
Support picture format | BMP , PCX | |
Detection function | Sensor | Paper out, cover opened, paper will be lack(optional),un-take out printed paper(optional) |
Physical characteristics | Paper loading | Easy paper loading |
Operating condition | -10℃ ~ 50℃，25% ~ 80%RH | |
Storage condition | ~40℃ ~ 70℃，≤93%RH（40℃） | |
Outline dimension | 190mm×100mm×98mm（L×W×H） | |
Weight | 1.6Kg | |
Certification | Certification | FCC、CE、CCC |
