Brief introduction

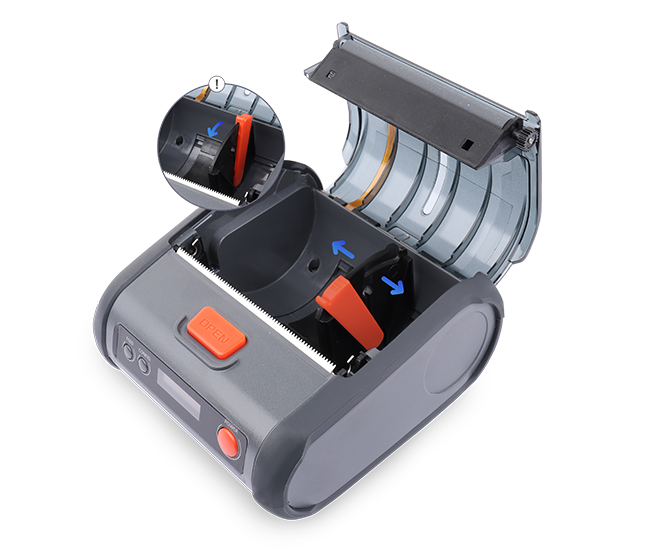

NT-P80 is a thermal POS printer. It has good printing quality and high stability, which is widely used in POS system, the logistics industry and many other fields. NT-P80 is a high-end product which is the first choice of many project customers since its launch.
NT-P80 connects other devices with USB or Bluetooth port. It offers drivers for WINDOWS and LINUX operating systems.
Main features
1) Battery power, easy move.
2) Support label paper and continuous paper printing.
3) Low noise and high printing speed.
4) Compatible with many kinds of paper width.
5) Easy paper loading.
6) Easily use and maintain.
7) USB interface.
8) Support Bluetooth connect.
Item: NT-P80 | Parameter | |
Printing parameter | Printing method | Thermal printing |
Resolution | 203DPI,8 dots/mm | |
Printing width | 72mm(576 dots) | |
Printing speed | 70-80mm/s | |
Interfaces and printer types | Standard:USB Bluetooth2.0/4.0 Interface port | |
Power Supply | Input | 100-240V AC,50-60HZ |
Output | 5V DC-2A | |
External Only | Power Adaptor | |
Command set | / | ESC/POS compatible commands |
FLASH | FLASH | FLASH 8K bytes, NV bitmap 64K bytes |
Character | Chinese | GB18030 24×24 |
Words, figures | ASCII 9×17,12×24 | |
User-defined | Support | |
Optional: | Traditional/Simplified Chinese, Korean,Japanese,English | |
Code Page: | 56 kinds of code page | |
Bar codes | 1D | UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93 |
2D | QR Code | |
Detection function | Sensor | Paper out |
LED indicator | Power indicator | Green |
Paper out indicator | Red | |
Error indicator | Red | |
Paper Requirement | Type | Standard thermal receipt paper |
Width | 80±0.5mm | |
Thickness | 0.056~0.1mm | |
Diameter | 48mm(Max.) | |
Physical characteristics | Paper loading | Easy paper loading |
Paper cutting | automatically cut paper | |
Operating condition | -10℃ ~ 50℃，25% ~ 80%RH | |
Storage condition | ~40℃ ~ 70℃，≤93%RH（40℃） | |
Outline dimension | 110mm×108mm×60mm（W×L×H） | |
Weight | 1Kg | |
Reliability | TPH life | 150km |
Motor life | 360,000 hours | |
Software function | Driver procedure | Windows（WIN7/WIN8/WIN10/Vista/XP/2000） Ubuntu 12.04 32/64, Ubuntu 14.04 32/64 |
