NT-P58C
Naiting
Brief introduction

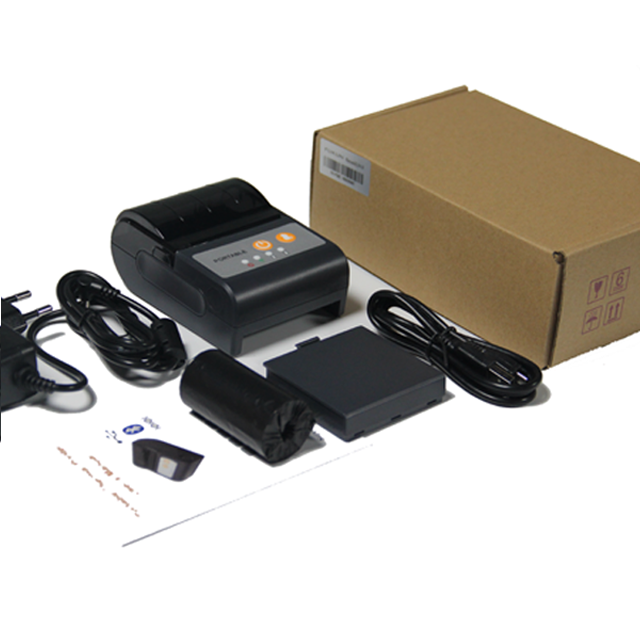

NT-P58-C is a thermal POS printer. It has good printing quality and high stability, which is widely used in POS system, food service industry, the logistics industry and many other fields. NT-P58-C is a cost-effective product which is the first choice of many customers since its launch.
NT-P58-C connects other devices with USB or Bluetooth port. It offers drivers for WINDOWS and LINUX operating systems.
Main features
1) Battery power, easy move.
2) Low noise and high printing speed.
3) Easy paper loading.
4) Easily use and maintain.
5) USB interface.
6) Support Bluetooth connect.
Item : NT-P58-C | Parameter | |
Printing parameter | Printing method | Thermal printing |
Resolution | 203DPI,8 dots/mm | |
Printing width | 48mm(384dots) | |
Printing speed | About 70-80mm/s | |
Interfaces | Standard: USB interface and Bluetooth connect. | |
Power | Battery capacity | 1500mAh rechargeable li-ion battery |
Command set | / | ESC/POS compatible commands |
Storage | RAM | Receive buffer area 4K Bytes |
FLASH | FLASH 4M bytes, NV bitmap 64K bytes | |
characters | Chinese | GB18030 24×24 |
Words, figures | ASCII 9×17,12×24 | |
User-defined | Support | |
Code pages | Optional international character sets 45 | |
Bar codes | 1D | UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93 |
2D | QR Code | |
Detection function | Sensor | Paper out |
LED indicator | Power indicator | Red |
Battery indicator | Red | |
Bluetooth indicator | Blue | |
Thermal paper | Type | Standard thermal receipt paper |
Width | 57.5±0.5mm | |
Thickness | 0.065~0.1mm | |
Diameter | 38mm(Max.) | |
Physical characteristics | Paper loading | Easy paper loading |
Paper cutting | Manual cut paper | |
Operating condition | -10℃ ~ 50℃，25% ~ 80%RH | |
Storage condition | ~40℃ ~ 70℃，≤93%RH（40℃） | |
Outline dimension | 97.5mm×75mm×48mm（W×L×H） | |
Weight | 0.2Kg | |
Reliability | TPH life | 50km |
Motor life | 360,000 hours | |
Software function | Driver procedure | Windows（WIN7/WIN8/WIN10/Vista/XP/2000） Ubuntu 12.04 32/64, Ubuntu 14.04 32/64 |
