Brief introduction

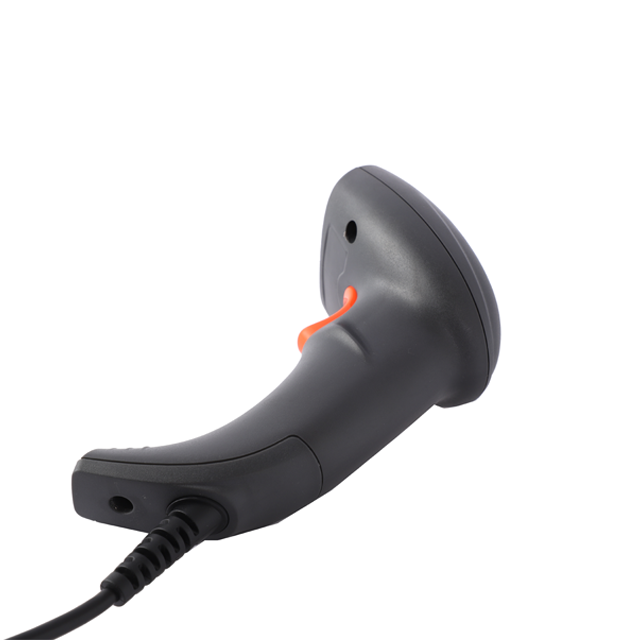

The Naiting AW-1500 Laser was designed with straight forward applications in mind – and was designed to be a simple, easy to use, affordable solution.
Get high performance and increased reliability for a fraction of the cost with the new Naiting AW-1500 laser barcode scanner. The Naiting AW-1500 Laser increases accuracy thanks to a wide scan area with a longer depth of field and proved more reliable due to decrease working time for the laser head. In addition, the advanced ergonomic design contributes to the AW-1500 Laser's standing as a highly efficient ,cost effective, rapid-fire scanner. It is ideal for scan-intensive and light industrial applications.
Main features
1. The new decoder chip. Interpretation of various one-dimensional code.
2. Key life can be used up to 50 million times.
3. USB wireless receiver, plug and play, easy to set up, can be quickly used with other office equipment.
4. High-resolution laser scanning engine, fast scan code.
5. Can withstand more than 3 meters free fall.
6. 50-100 meters away from the open distance.
7. Out of distance automatic storage.
8. Can be used continuously for more than 12 hours
OPERATIONAL PARAMETER | |
Model | NT-AW-1500 |
Light Source | 650nm laser |
Depth of Filed | 0-280@ UPC/EAN 0.33mm PCS=90% |
Scan Type | Single Laser |
Scan Angle | Yaw 55°,Rotation 30°,Pitch 65° |
Scan Method | Manually/Contnuous/Automatic inductive scanning(Optional) |
Read Resolution | ≥ 4mil |
Print Contrast | ≥30% |
Visual Indicator | Blue LED light, Buzzer |
Interface | RS-232; USB: USB COM, |
PHYSICAL CHARACTERISTICS | |
Dimension H x W x L: | 160mm*66.5mm*93mm（L*W*H） |
Weight | 240g (with cable) |
Cable | Standard 1.6M |
Material | ABS+PC |
POWER PARAMETER | |
Input Voltage | 5VDC±10% |
Working current | 85MA |
ENVIRONMENTAL PARAMETER | |
Operating Temperature | -20℃~+60℃ |
Working Humidity | 5%to 95% relative humidity, non-condensing |
StorageTemperature | -40℃~+70℃ |
Light Levels | 0 to 100,000 Lux (Daylight) |
BARCODE TYPES | |
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded | |
